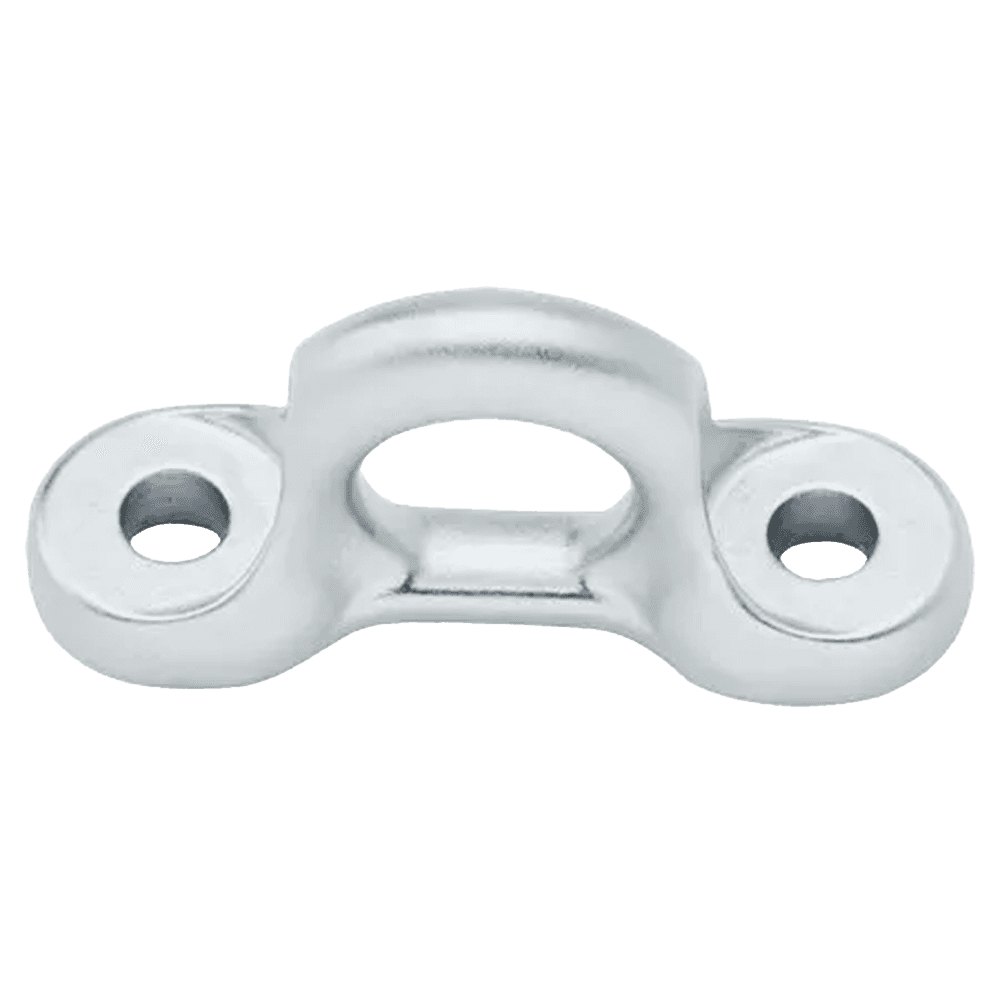

Harken 56mm Padeye — 2 Fasteners

Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. The 2759 is 316 cast stainless steel.

Weight (g) : 38 g

Weight (oz) : 1.3 oz

Fasteners (mm) : 6 mm

Fasteners (in) : 1/4 in

A (mm) : 56 mm

A (in) : 2 1/4 in

B (mm) : 18 mm

B (in) : 3/4 in

C (mm) : 38 mm

C (in) : 1 1/2 in

E (mm) : 26 mm

E (in) : 1 in

F (mm) : 15 mm

F (in) : 9/16 in

G (mm) : 16 mm

G (in) : 5/8 in

Maximum Working Load - angle 1 (kg) : 1156 kg

Maximum Working Load - angle 1 (lb) : 2550 lb

Maximum Working Load - angle 2 (kg) : 1086 kg

Maximum Working Load - angle 2 (lb) : 2392 lb

Maximum Working Load - angle 3 (kg) : 1111 kg

Maximum Working Load - angle 3 (lb) : 2450 lb

Breaking load - angle 1 (kg) : 2313 kg

Breaking load - angle 1 (lb) : 5100 lb

Breaking load - angle 2 (kg) : 2172 kg

Breaking load - angle 2 (lb) : 4784 lb

Breaking load - angle 3 (kg) : 2222 kg

Breaking load - angle 3 (lb) : 4900 lb
