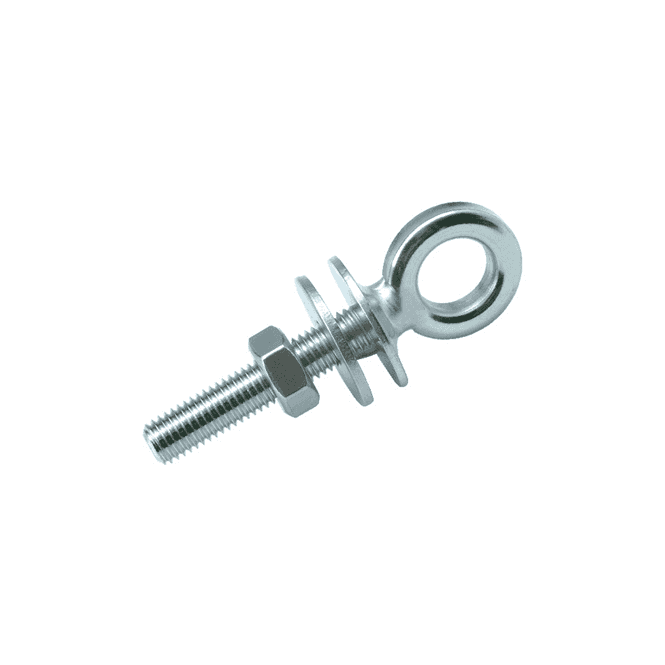

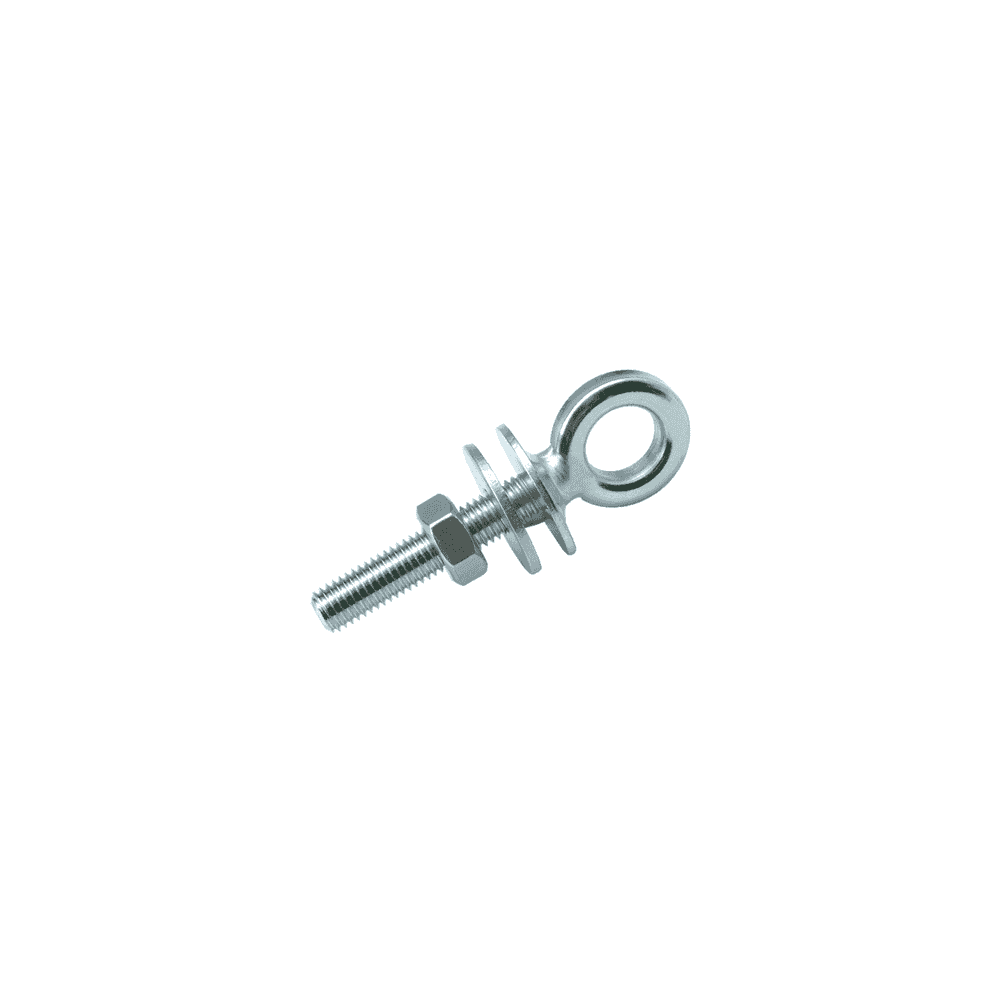

Allen M6 x 87mm Eye Bolt

The Allen A6204 is a stainless steel M6 eye bolt with a 60 mm thread length and 76 mm length from the centre of the eye to the end of the thread. With a 1,360 kg breaking load, it is suitable for a range of high-load sailing and rigging applications.

The Allen A6204 Stainless Steel Eye Bolt is a robust M6 eye bolt designed for use in sailing, rigging and other applications where a strong, secure attachment point is required.

Manufactured from stainless steel, the A6204 combines corrosion resistance with a high breaking load, making it well suited to the marine environment. The eye provides a convenient attachment point for shackles, blocks, control lines and other rigging components.

The A6204 has an M6 thread, a 60 mm screw/thread length and measures 76 mm from the centre of the eye to the end of the threaded section. It has a 13 mm head diameter and a 1,360 kg breaking load.

The A6204 is part of Allen's stainless steel eye bolt range, with alternative M6 and M8 sizes available for different mounting requirements.

Key Features:

• Allen A6204
• Stainless steel construction
• M6 thread
• 60 mm screw/thread length
• 76 mm length from eye centre
• 13 mm head diameter
• 1,360 kg breaking load
• Suitable for marine and sailing applications
• Useful for securing rigging, blocks and other sailing hardware

Technical Specification:

• Part Number: A6204
• Thread: M6
• Overall length: 87 mm
• Length from hole centre: 76 mm
• Screw length: 60 mm
• Head diameter: 13 mm
• Thread length: 60 mm
• Breaking load: 1,360 kg
• Weight: 2.6 g
